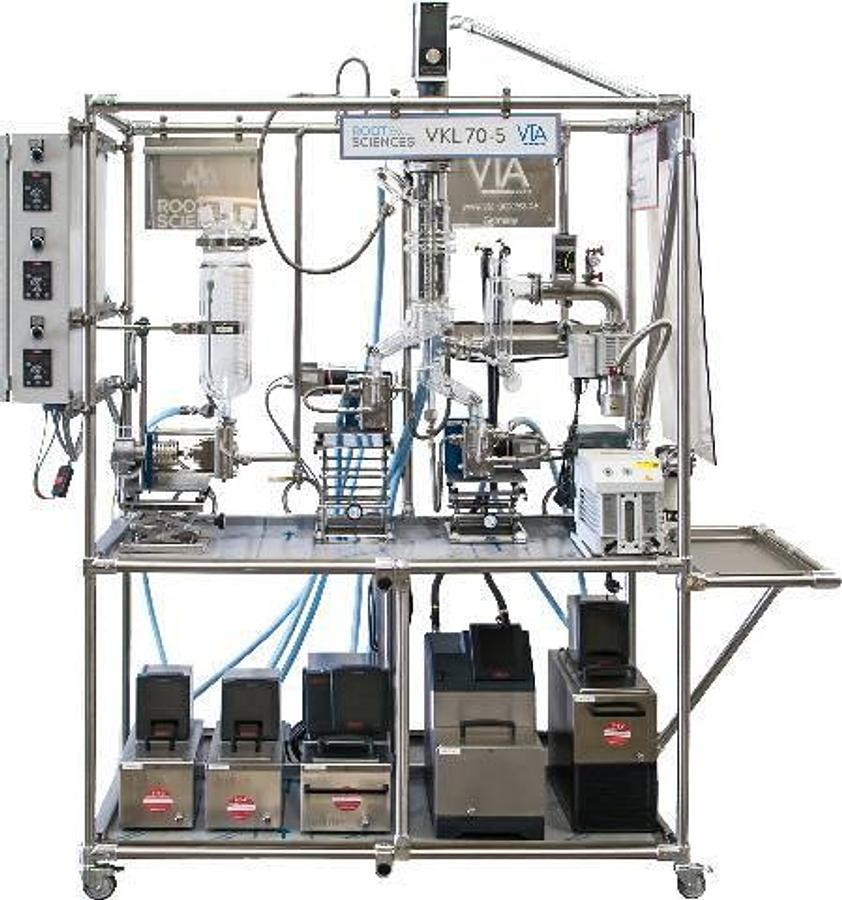

VTA Root Science VKL 70-5

The VTA VKL 70-5 is the entry-level system in the VTA line up and is suitable for processors in need of industry

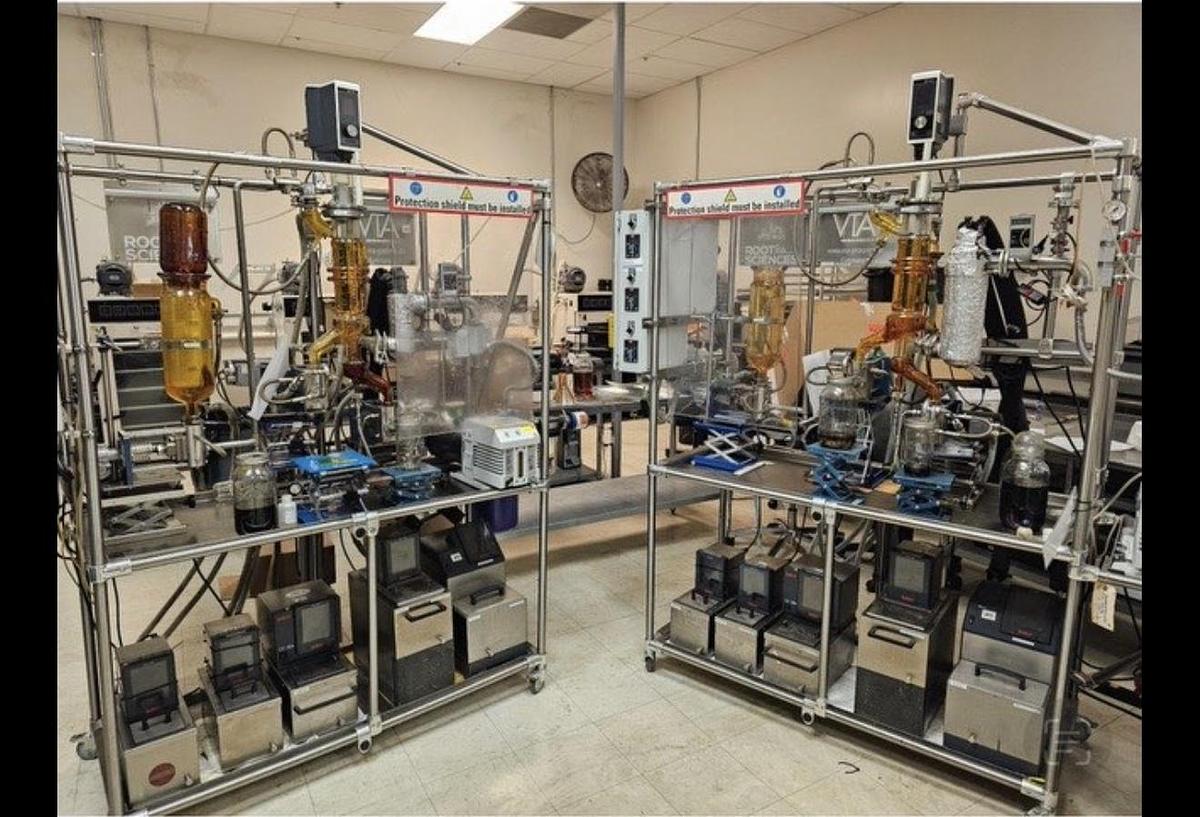

Used Root Sciences Wiped Film Short Path Distillation Automated System. Model VKL 70 - 5 RS. Throughput: 1500ml of BHO or CO2 winterized oil per hour. Maximum Evaporator temperature of 300 Degrees C. Temperature controlled and stabilized by independent Huber heating and cooling units for each individual part of the system (pictured). Operating pressure: 0.001 mbar. True Continuous feed: Feed tank is not under vacuum, via a one way check valve. The VKL utilizes metering pumps to dispense distillate from deep vacuum to atmospheric pressure, negating the use of a receiving flask. Fully jacketed system. Maintain consistent temperature throughout process. Fully pumped system from beginning to end. No need for heating guns or heat tap to operate system. Speed of the Distillate and Residue discharge pumps are adjustable. Precise parameter configuration for consistent end results. Last used in a Cannabis application.

Specifications

Throughput (per hour)1,200 to 1,700 ml

Distillate Yield4.8-5.4 liters

StagesSingle,

Electrical60A 240V, Single phase

Standards AvailableUL – CE

RegulationsGMP ready

Dimensions (LxWxH)5.8′ x 3.2′ x 7.1′Weight
